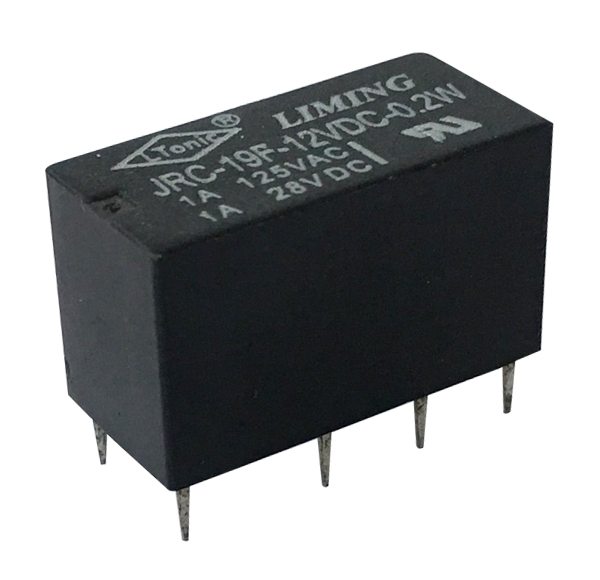

JRC-19F(4078)
Time： 2017-11-22
JRC-19F(4078)
| Outline Dimension(L×W×H) | 20.5X10X12 | Dielectric Strengh | Between Open Contact | 500VAC |
| Contact Form | 2C | Between Coil and Contact | 500VAC | |
| Contact Resistance | 50 mΩ | Life | Electrical | 1X105 |
| Coil Voltage | 5VDC ~ 48VDC | Mechanical | 1X107 | |
| Pick-up Voltage | ≤75% | Temperature Range | -40~ +70℃ | |
| Release Voltage | ≥10% | Coil Power(W) | 0.18,0.2,0.36 | |
| Contact transfer Current(A) | 1A | Mounting Form | PCB Terminal | |
| Contact Rating | 1A,125VAC/28VDC | Weight | 5g | |
| Insulation Resistance | 100 MΩ | Safty Approval | UL | |
| Terminal Layout |  | |||
| Mounting Holes(mm) |  | |||
